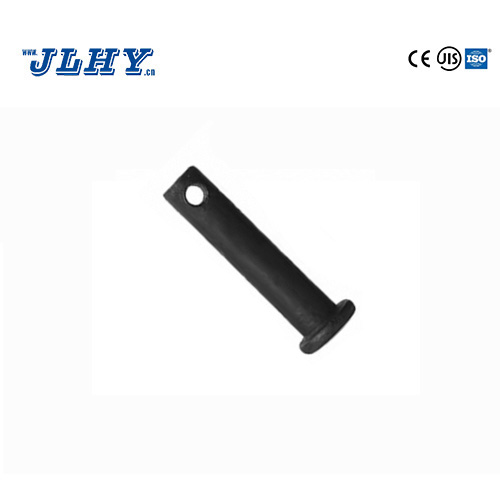

Clevis Pin with Through Hole
- Clevis Pin with Through Hole — Quick Details
- •Diameter (mm): 3 / 4 / 5 / 6 / 8 / 10 / 12 / 16 / 20 / 25
- •Length (mm): 10–300 (custom lengths available)
- •Hole Diameter (mm): 1 / 1.5 / 2 / 3 / 4 / 5 / 6 (or custom)
- •Material: Carbon Steel / Stainless Steel 304 / Stainless Steel 316
- •Surface Finish: Zinc plated / Black oxide / Polished / Passivated
- •Head Type: Round head / Flat head / Headless (custom options)
- •End Type: Chamfered / Flat end
- •Tolerance: ISO h9 / h11 (or as specified)
Detailed Information For Clevis Pin with Through Hole
A clevis pin with through hole is a precision fastening pin designed to secure clevis-type joints while allowing quick installation and removal. The cross drilled hole at the end of the pin enables locking with a cotter pin, split pin, or safety clip, preventing accidental disengagement during operation.
Manufactured by JLHY, these clevis pins are widely used in mechanical linkages, agricultural equipment, automotive systems, construction machinery, and industrial assembly applications where safe and repeatable joint connection is required.
Features:
1. Secure Locking with Cotter Pin Compatibility
2. High Strength & Load-Bearing Performance
3. Precision Machining for Smooth Assembly
4. Corrosion-Resistant Material Options
5. Custom Sizes & OEM Manufacturing
6. OEM / Private Label Supply
Applications
- Agricultural machinery linkages
- Trailer and towing systems
- Construction equipment joints
- Automotive suspension and linkage systems
- Industrial mechanical assemblies
- Marine and outdoor equipment
Contact us for competitive pricing!
